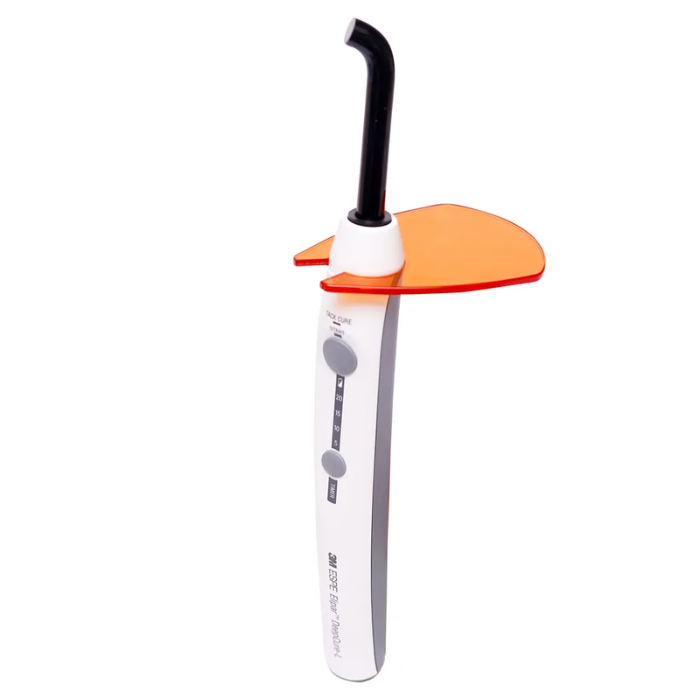

3M ESPE Elipar DeepCure L LED Curing Light

• Light Source: High-performance LED
• Wavelength Range: 430 - 480 nm
• Peak Wavelength: 444 - 452 nm
• Light Intensity: 1470 mW/cm² (between 400 and 515 nm)
• Light Emission Area: 60 - 65 mm² (optically active)
• Power Supply: Lithium-ion battery
• Exposure Time Settings: 5, 10, 15, 20 seconds; Continuous mode (120 seconds); Tack-cure mode (1 second)
• Battery Capacity: 2300 mAh

• 1 x Elipar DeepCure L LED Curing Light

Preparation:

• Fully charge the device before use.
• Ensure the light guide is clean and securely attached.

Power On:

• Press the power button on the handpiece to turn on the device.

Select Exposure Time:

• Choose the exposure time for the dental material: 5, 10, 15, or 20 seconds, continuous mode (120 seconds), or tack-cure mode (1 second).

Positioning:

• Aim the light beam at the treatment area, keeping a safe distance from oral tissues.

Curing Process:

• Hold the handpiece steady and activate the curing light.
• Ensure the treatment area is fully illuminated for the selected exposure time.

Post-Curing:

• Turn off the light and remove the handpiece from the treatment area.

Repeat or Adjust:

• Repeat or adjust the curing process as needed based on clinical judgment.

Power Off:

• Press the power button to turn off the device.

Charging:

• Recharge the handpiece when the battery indicator shows a steady red light.

Maintenance:

• Clean the light guide and handpiece regularly according to the manufacturer's instructions.

Storage:

• Store the device in a clean, safe environment and place the handpiece on a flat surface when not in use.

Safety Precautions:

• Follow safety instructions in the user manual to avoid injury or damage.
• Use protective equipment, such as goggles, to shield eyes from the light.
