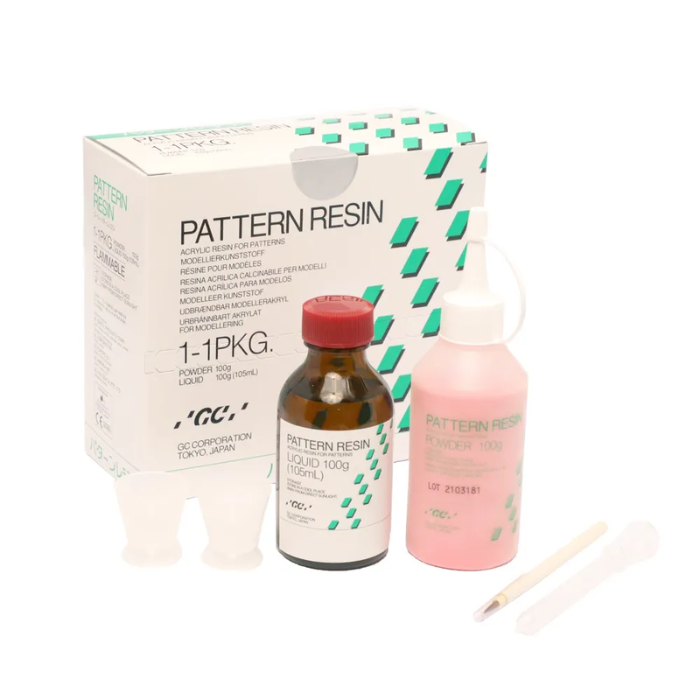

GC Pattern Resin 1-1 Package
PATTERN RESIN is a self-curing acrylic resin used for fabricating precise patterns for copings, post and core build-ups, bars, implant attachments, clasps, and more. Ideal for challenging restorations, it offers quick setting, minimal shrinkage, and supports both direct and indirect pattern-making. The resin leaves no ash residue after burnout, ensuring a perfect fit.
Contact us for sales assistance from our Biomedical Engineer.
Features:
- Low polymerization shrinkage for greater accuracy and dimensional stability
- Well-defined margins and ultra-smooth surface with high strength
- No distortion, even in thin layers
- Excellent fluidity and easy handling due to thixotropic properties
- Supports both direct and indirect pattern-making techniques
- High wettability between powder and liquid without the need for mixing
- Ash-free burn-out, leaving no residue and resulting in smoother cast surfaces
- Quick setting time, solidifies within 4 minutes, faster than comparable products
- Allows seamless corrections and additions even after setting
- Top-quality acrylic resin, highly favored by prosthodontists
Indications:
- Tapered coping for telescopic and other crowns
- Inlay, palatal/lingual bars, connectors, and clasps
- Maryland bridges
- Temporary splints for soldering
- Core build-up patterns within the mouth
- Construction of implant superstructures
| Technical Specification | WARNINGS
PRECAUTIONS:
|
|---|
- 1 x 100g Powder
- 1 x 105mL Liquid
- Mixing cups
- Brush
Step 1. Powder and liquid preparation Dispense adequate amounts of powder and liquid into each rubber cup.
Step 2. Building the coping (for secondary crown patterns of tapered crowns or telescopic crowns)
a) Moisten the tip of the brush with the liquid and pick up a small amount of powder.
b) Deposit this mixture on the crown and progressively build up the secondary crown pattern by repeating the procedure. In this case, no separating medium is required, but when working on a stone model, GC Acro Sep, GC Multi-Sep or Vaseline should be used as separator. - Clean the brush with liquid after use or during the work if necessary.
Step 3. Checking the internal surface of the pattern After the resin has set (3 min. at 23°C /73°F), remove the pattern carefully from the internal crown and check the margin and the internal surface .
Step 4. Fine adjustment
a) Return the pattern to the internal crown and make a uniform thickness (0.3-0.4 mm) by using a bur.
b) Remove the pattern and check the thickness with the measuring device.
Step 5. Waxing veneer and Cut out
a) Perform the wax-up with inlay wax.
Note: There is no need to clean the surface of the pattern resin with a cleaning agent before waxing.
b) Cut out the veneer for the facing .
c) Place the retention beads.
Step 6. Investing, Burning out and Casting For a single crown, all procedures can be performed in the usual manner. For a larger pattern, hold at 250°C (482°F) for 1 hour before raising to the final burn out temperature.
