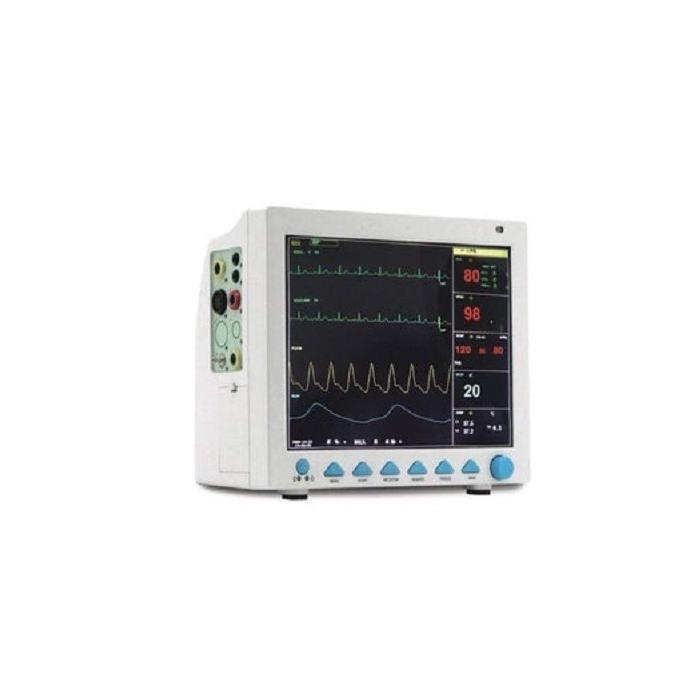

Niscomed Flight 9000 Multipara Monitor

Features

• 12.1” Colour TFT LCD display with
• Waveforms upto 8 Channels
• Portable , streamline handle design
• Monitor measures from Adult to Neonates
• Graphic and tabular Trend for 96 hours for all parameters
• Multi Screen format
• Audible and Visual alarms with adjustable alarm ranges
• Powerful data management and storage capacity
  Manual or Automatic NIBP measuring
• with 500 unit memory
• Rechargeable battery backup
• Weight : 4.5Kg approx.

NIBP

• Method: Oscillometry
• Operation modes: Manual/Automatic/STAT
• Measurement unit: mmHg/KPa selectable
• Measurement types: Systolic, Diastolic, Mean
• Measurement range: Adult: 10-270mmHg
• Over-pressure protection: YES
• Resolution: ImmHg
• Accuracy: The mean error shall be less than +5 mmHg, the standard deviation shall be less than +8mmHg
• Alarm: Systolic,Diastolic,Mean

Spo2

• Measurement range: 0-100%
• Accuracy: +2%(70~100%);0~69% unspecified
• Alarm range: 0-100%

ECG

• S-lead or 12-lead selectable
• Input: 5-lead: RA; LA; RL; LL; Vor R; L; N; F; C
• Lead selection: I; IT; III; avR; avL; avF; Vx; CAL
• Gain selection: x0.25,%0.5,x1,%x2,auto
• Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
• Accuracy: +1bpm or £1%, whichever is greater
• Protection: Withstand 4000V AC/50Hz voltage in isolation against electrosurgical and defibrillation
• Calibration signal: 1mV+5%
• Operation modes: Diagnostic, Monitor, Surgery
• Heart rate range: Adult: 15-300bpm Paediatric/
• Neonatal: 15- 350bpm
• Measurement range: -2.0mV~2.0mV
• S-T detection: YES, Arrhythmia analysis: YES
  Alarm: YES, audible and visual alarm, alarm events
  recallable

Respiration

• Method: RA-LL impedance
• Measurement range: Adult: 0-120rpm, paediatric/neonatal:
  0-150rpm
• Apnea alarm: YES

IBP (Ungradable)

• Channel: 2 channels
• Pressure transducer: Sensitivity: 5( mV/V/mmHg)
  Transducer sites: ART, PA, CVP, RAP, LAP, ICP
• Alarm range: -10~300mmHg

Temperature

• Resolution: 0.1°C
• Channel: Dual- Channel
• Measurement Range: 0-50°C
