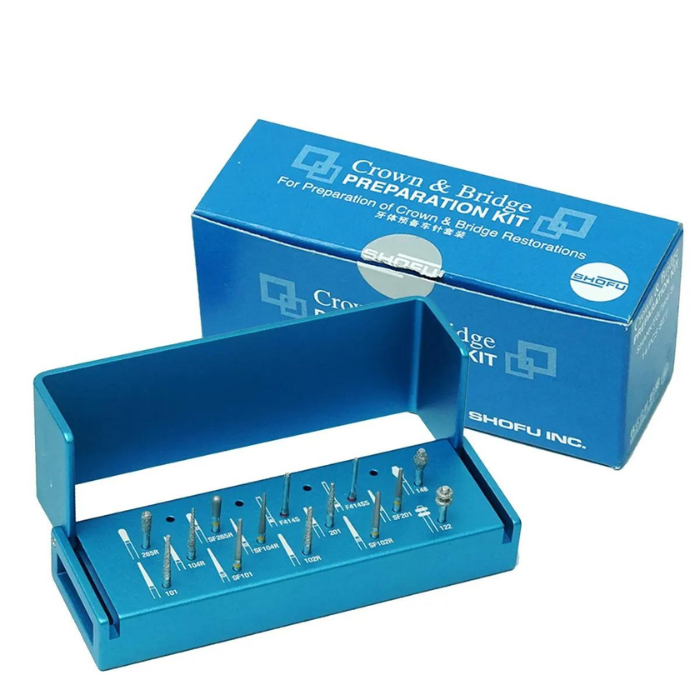

Shofu Crown & Bridge Preparation Burs Kit
The Crown & Bridge Preparation kit is designed to offer speedy, simple and accurate tooth preparation for a wide range of crown and bridge restorations, veneers and onlays. Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points. 2 special "Tissue-Protective End-Cutting Burs" for shoulder preparation and finishing under gingival margins without injuring the soft tissue. These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.
Contact us for sales assistance from our Biomedical Engineer.
- TAPERED FLAT ENDED DIAMOND POINTS: For crown & bridge and metal inlay preparation
- TAPERED ROUND ENDED DIAMOND POINTS: For crown & bridge preparation with a heavy chamfer
- TAPERED ELLIPSE: For crown & bridge preparation with a light chamfer and the superfine grit for finishing restorative materials
- TISSUE PROTECTIVE END-CUTTING: 1.0mm depth for anterior tooth, all ceramic crown preparation
- ROUND INVERTED CONE: For buccal, palatal and lingual reduction during crown & bridge preparation
- DOUBLE CONE: For occlusal reduction during crown & bridge preparation
Features:
- Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points.
- 2 special "Tissue-Protective End-Cutting Burs" for shoulder preparation and finishing under gingival margins without injuring the soft tissue.
- These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.
- 14 kinds of specially selected FG Diamond Points in 3 different grits.
- Regular (No marking on shank)
- Fine (Red band on shank)
- SuperFine (Yellow band on shank)
| Technical Specification | TAPERED FLAT ENDED DIAMOND POINTS
TAPERED ROUND ENDED DIAMOND POINTS
TAPERED ELLIPSE
TISSUE PROTECTIVE END-CUTTING
ROUND INVERTED CONE
DOUBLE CONE
DEPTH CUTTING DIAMOND POINTS
Maximum recommended speed for the burs:
Less than 450,000 rpm: 201, SF201 Less than 300,000 rpm: 101, 102R, 104R, 265R, F102R, F414SS, F414S, SF101, SF104R, SF265R Less than 160,000 rpm: 148 Less than 120,000 rpm: 122 |
|---|
- 1 x Kit of 14 burs (Diamond Points FG in 3 different grits - Regular, Fine , Superfine)
- Regular grit: 201, 101, 102R, 104R, 265R, 148 , 122
- Fine grit: F102R, F414SS, F414S
- Superfine grit: SF201, SF101, SF104R, SF265R
- Use the depth cutting diamond points to create precise depth orientation grooves.
- Use the tapered flat-ended diamond points for reduction of buccal surface for PFM crowns and on buccal and lingual surfaces of all ceramic crowns.
- Use the tapered round-ended diamond points for crown & bridge preparation with a heavy chamfer.
- Use the tapered ellipse diamond points for crown & bridge preparation with a light chamfer and for finishing restorative materials.
- Use the round inverted cone diamond points for palatal/lingual reduction.
- Use the double cone diamond points for occlusal reduction during crown & bridge preparation.
- Use the Tissue-Protective End-Cutting Burs for shoulder preparation and finishing under the gingival margins without injuring the soft tissue. Take care to avoid applying too much pressure and causing tissue trauma.
