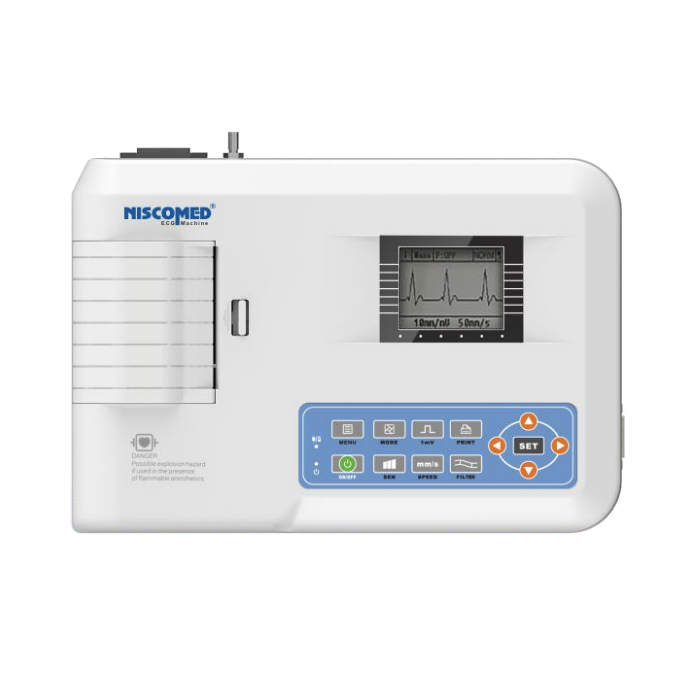

Single Channel Niscomed Flight 100 ECG Machine

Specification

Flight 100 is a kind of single channel electrocardiograph,which features in printing ECG waveform by thermalprinting system, prompting for "Lead off" or "Lack of paper",
multi-language interface, recording ECG waveformin AUTO/Manual mode, convenient to operate.

Features

• 2.7 inch STN display shows the working status and
  ECG waveform. check waveform before printing to
  save record paper.
• Output system: High-resolution thermal- array(8dots/mm),it
  needs not be adjusted.
• Frequency response: Up to 150Hz.
• The device can record exact single ECG waveform and remark.
  The mark includes: lead sign, sensitivity, paper speed, filter state.

Physical characteristic

• Working environment
• Temperature: 5°C~40°C
• Relative humidity: 25%~95%(non-condensing)
• Atmospheric pressure: 700hPa~1060hPa
• Transport and storage environment
• Temperature: -40°C~+55°C
• Relative humidity: <95%
• Atmospheric pressure: 500hPa~1060hPa
• Dimension: 315mm(L) x 215mm(W) x 77mm(H)
• Weigh: 1.5Kg
