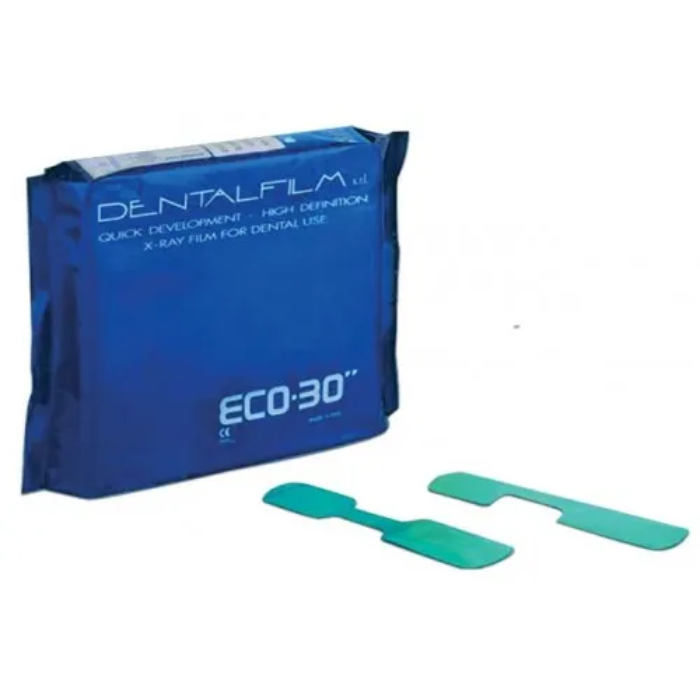

Dentalfilm - Eco 30 - Self Developing X-Ray Film (50pcs)

The ECO-30 films come ready packed with a moon bath containing both developer and fixer, and so do not require a darkroom.
The ECO-30 is intended to provide fast, high-resolution x-rays without the use of a dental processor.

Product Components

Special Price ₹2,295.00 Regular Price ₹3,500.00

In stock

SKU

SBMDL01880

Dentalfilm - Eco 30 - Self Developing X-Ray Film (50pcs) is available to buy in increments of 1

Indication:

For emergencies, surgery checks, endodontic and implant procedures.
Mobile dentistry, nursing home dentistry, military field conditions, and as a backup for digital radiography.

Advantage:

Features:

The ECO-30 films come ready packed with a mono bath containing both developer and fixer, and so do not require a darkroom.
The ECO-30 is intended to provide fast, high-resolution x-rays without the use of a dental processor.
Available as a self-contained packet with a mono bath solution in one end and an adult size film in the other, the ECO-30 x-ray is fully developed in 50 seconds.
It is recommended for endodontic and implant procedures, nursing home dentistry, mobile dentistry, late night emergencies, and in case of equipment failure.
The developed x-ray can be archived for up to 10 years

Technical Details
Technical Specification	EXPOSURE CHART OBJECT TIME(70kV 8mA) Maxillary Molars 0.6 Sec Bicuspids 0.5 Sec Cuspids 0.4 Sec Incisors 0.3 Sec Mandibular Molars 0.5 Sec Bicuspids 0.4 Sec Cuspids 0.3 Sec Incisors 0.3 Sec
Product Components	Pack of 50 Films BOX CONTENT: 50 films - Size 30.5 mm x 40.5 mm.
Directions to Use	STEP 1: We suggest disinfecting the film before use. After exposure to x-rays, and holding ECO 30 upright, open the liquid pouch by rolling it up. It is important to squeeze the pouch to its extremity, ensuring that all the monobath travels to the opposite film end, then un-roll it. STEP 2: Start agitating by sliding the fingers from the top down to the bottom of the film, repeating this movement for 50 secs/1 minute IT IS IMPORTANT TO AGITATE: CONSTANTLY, FOR 50 SECS AND IMMEDIATELY AFTER THE MONOBATH POUCH HAS BEEN OPENED, otherwise image may result spotted. STEP 3: When development and fixation are complete, turn the film upside down, pushing the mono bath back into its original place. Open the film by prising it apart, remove the film and rinse it under water, even by sliding the fingers on its surface to remove all the mono bath residual, otherwise the picture may turn yellow.
