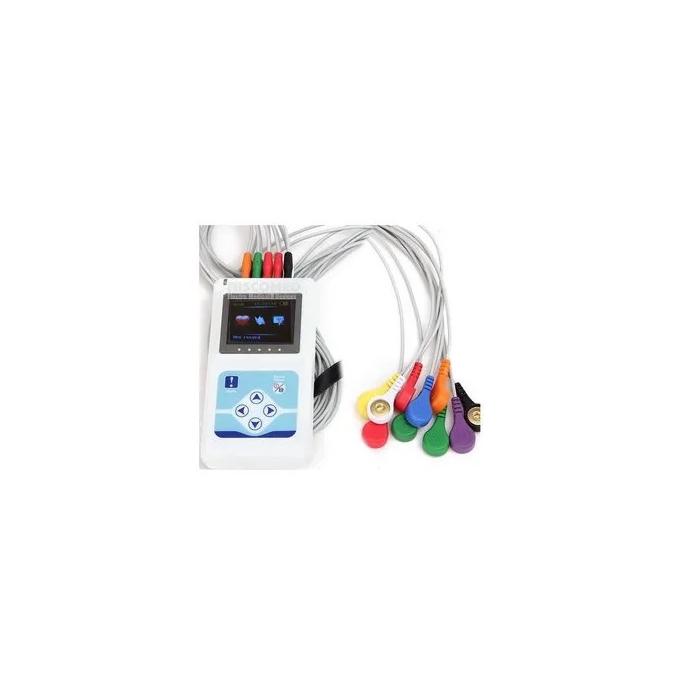

Niscomed Holter ECG System , Model No. - TLC 5000
Product Description
Features
- With Advance Design And Technology. The Recorder Can Work Stably, Dependable And Durably.
- Be Provided With The Capability Of Anti-jamming And Aseismatic.
- Small Volume With Olled Screen. The Resolution Is 160#128.
- Be provided with functionsof waveform preview, record review and event marketing.
- Accurate record of the start time of the data sampled owing to the real time clock of itself.
- Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TFcard to storage the data.
- The maximum capability can be 2gb , so the original data can be saved perfectly by no compression.
- the average review time of single case can be less than 40 seconds by using interface of USB 2.0.
- Record waveform details inextenso by the design of high precision sampling frequency.
- Record the state of pacemaker exactly by higher sampling frequency.
- International standard of 12 leads , record 24-hour Drcg with the same standard of the ECG.
- Number of channel : 12 channel
- Sampling Accuracy : 12bit
- Record Time : 24h
- Power : 2 Aa size Battaries
- Interface : Usb 2.0:
- Scale Voltage : 1 mv+5%
- Standard Sensitivity : 10mm\mv+5%
- Noise level : <30uv:
- Cmrr : >60db:
- Low frequency characteritics Time constanst >3.2s:
- Scan speed : 25mm\s+5%
- Enduring polarization voltage : +300mv Dc polarization voltage, sensitivity shifts<+10%
- Least measuring signal : 50 mvp-p
- Product safety type : Type B (internally powered)
- Dimensions : 111(l)*60(w)*25(h)MM
- Weight : About 105g ( without battery)
In stock
SKU
SBNLP01690
Price:
0.00
(Inclusive of Taxable Goods)
Niscomed Holter ECG System , Model No. - TLC 5000 is available to buy in increments of 1
Contact us for sales assistance from our Biomedical Engineer.
Niscomed Holter ECG System , Model No. - TLC 5000 · Number of channel : 12 channel · Sampling Accuracy : 12bit · Record Time : 24h · Power : 2 Aa size Battaries
