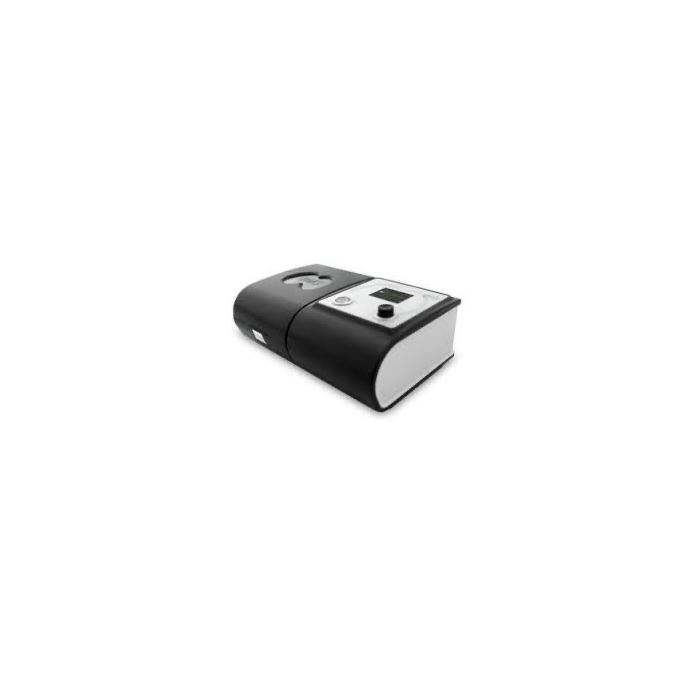

RESPIRCARE RMS MEDICAL BIPAP SBPAP25
Product Specifications :
- Universal Power Supply >> Input Range 100-240 V, 50-60 Hz
- Average Sound Level >> Less than 30 dB(A)
- Pressure Range >> 4 cm to 25 cm H20 (±1 cm H20)
- Ramp Time >> 0 to 60 minutes (5-min increments)
- Modes: CPAP, S, S/T, T
- Inspiratory Sensitivity: stalls 1~6, Auto
- Respiratory Sensitivity: stalls 1~6, Auto
- PAP Rise Time:100~600ms (100ms Adjustable)
- Monitoring Parameters: IPAP, EPAP, Vital, Leak, Minvent, RR
- Alarm function: tube off alarm, minute ventilation alarm, apnea alarm, respiratory rate alarm, power failure alarm
- Screen size: 4.3" TFT
- Respiratory time: 0.5~3sec (0.1sec Adjustable)
- Respiratory rate : 2~40 bpm
- Ramp Start Pressure >> 4 to Min EPAP Pressure (User adjustable)
- Altitude Compensation >> Automatic
- Comfort Technologies >> Smart-Flex
- Leak Compensation >> Automatic
- Auto-Start >> Yes
Heated Humidifier Characteristics :
• Water Capacity >> 300ml at recommended water level
• Heater Settings >> 1 to 6
Dimensions & Weight (Approximate)
• Dimensions : 7.2" L x 5.4" W x 4.5" H (185mmL x 138mmWx 115mmH)
• Weight : 2.2 lbs (1KG)
• Dimensions with HUMIDIFIER : 7.2" L x 10.8" W x 4.5" H (185mmL x 275mmWx 115mmH)
• Weight with HUMIDIFIER : 3.8 lbs (1.74KG)
CONTENT OF BOX
- Unit packing : 15.4" L x 14.2" W x 6.3" H (390 mm x 360 mm x 160 mm)
- One Standard BPAP25 Machine,
- One Nasal mask
- One humidifier
- One 6-foot tube
- One Printed User's Manual
- One Power Cord
Warranty: 2 Years
Contact us for sales assistance from our Biomedical Engineer.
RMS BPAP series brings a wide array of proven technologies together with patient focused advancements to create a truly intelligent sleep therapy system. The BPAP25 includes all the great features you expect from a sleep therapy system including a wide pressure range (4-25 cm), patient adjustable ramp, data card, the latest Smart-Flex comfort technologies, and a universal power supply. On top of this, the features' resistance control technologies and advanced therapy tracking capabilities -- including advanced event detection, response and reporting.
